Plotting results from SQLite files

A standard plotting routine is provided to generate figures from data generated by gfdlvitals that is stored in the SQLite data files.

Making plots within a Jupyter notebook

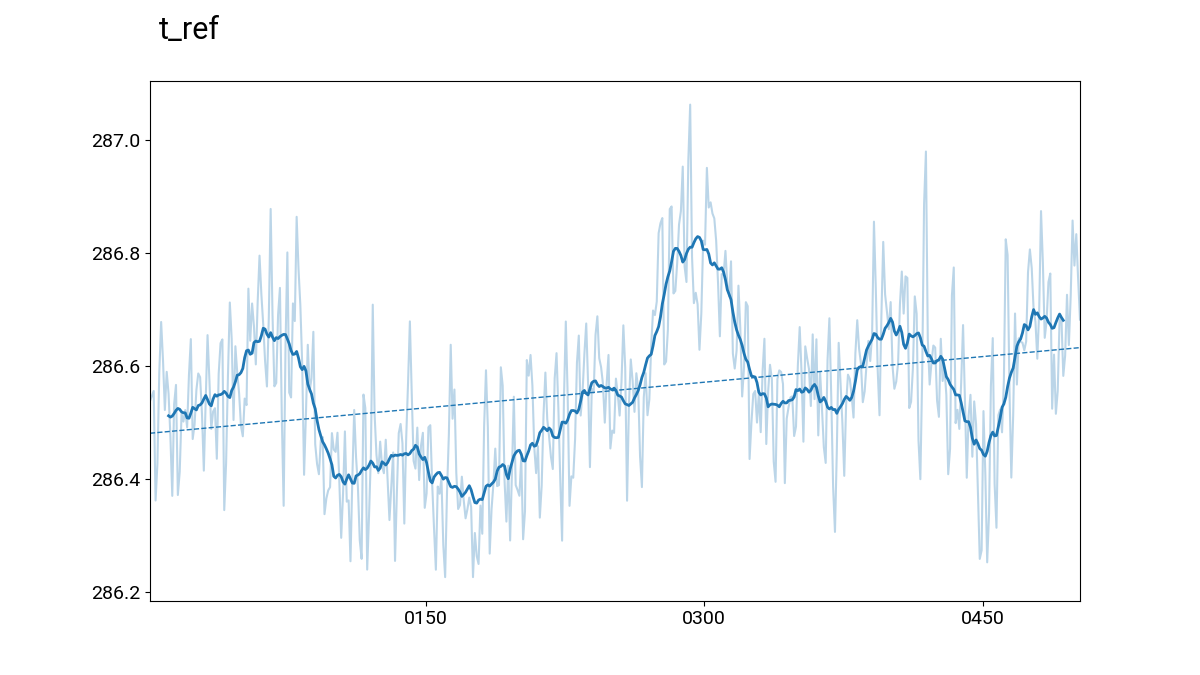

The code below illustrates how to use the plotting function on the sample data provided with the gfdlvitals package. The plotting function can take multiple gfdlvitals.VitalsDataFrame objects if they are passed into the function as a list. There are additional options to smooth the data, overlay a trend line, and align offset time axes.

In [1]: import gfdlvitals

In [2]: df_ctrl = gfdlvitals.open_db(gfdlvitals.sample.picontrol);

In [3]: df_hist = gfdlvitals.open_db(gfdlvitals.sample.historical);

In [4]: fig = gfdlvitals.plot_timeseries([df_ctrl,df_hist],\
   ...:     align_times=True,\
   ...:     trend=True,\
   ...:     smooth=20,\
   ...:     var="t_ref",\
   ...:     labels="Preindustrial Control,Historical");
   ...:
---------------------------------------------------------------------------
KeyError                                  Traceback (most recent call last)
Cell In[4], line 1
----> 1 fig = gfdlvitals.plot_timeseries([df_ctrl,df_hist],\
      2     align_times=True,\
      3     trend=True,\
      4     smooth=20,\
      5     var="t_ref",\
      6     labels="Preindustrial Control,Historical");

File ~/checkouts/readthedocs.org/user_builds/gfdlvitals/envs/latest/lib/python3.11/site-packages/gfdlvitals/plot.py:222, in plot_timeseries(dsets, var, trend, align_times, plottype, smooth, nyears, labels, legend, means, title)
    217 _varname = var if (title in ["varname", "both"]) else ""
    218 axes_dict[label]["topline_label"] = _ax.text(
    219     0.01, 1.08, _varname, ha="left", transform=ax1.transAxes, fontsize=22
    220 )
--> 222 _long_name = dset[var].attrs["long_name"]
    223 _long_name = f"Sum of {_long_name}" if plottype == "sum" else _long_name
    224 _long_name = _long_name if (title in ["longname", "both"]) else ""

KeyError: 'long_name'
_images/prettyfig.png

Using the command-line interface

The same plotting function can be called from the command line and an X-window Matplotlib figure viewer will appear with the plot. The inputs to the script are the SQLite (*.db) files and the various options can specified with flags.

plotdb [-h] [-a] [-t] [-s SMOOTH] [-l LABELS] [-n NYEARS] DB FILES [DB FILES ...]

  • DB FILES: Path to input database files

  • -a, align: Align different time axes

  • -t, trend: Add trend lines to plots

  • -s, smooth: Apply a n-years smoother to all plots

  • -l, labels: Comma-separated list of dataset labels

  • -n, nyears: Limit the plotting to a set number of n years

Hint

Use the left and right arrows keys on the keyboard to cycle through different variables
